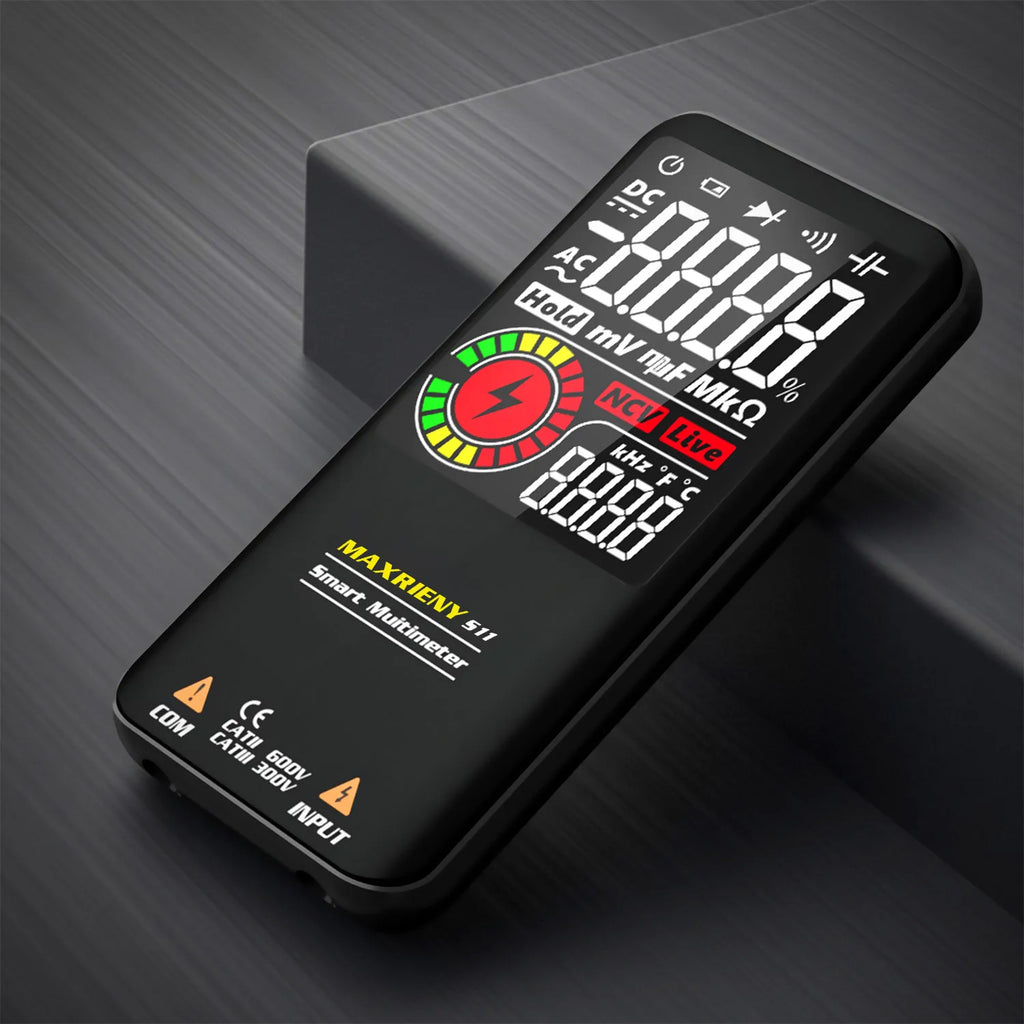

MAXRIENY Smart Digital Multimeter USB Rechargeable True RMS EBTN DC AC Voltage Capacitance Ohm Diode NCV Hz Live WireTester
MAXRIENY Smart Digital Multimeter USB Rechargeable True RMS EBTN DC AC Voltage Capacitance Ohm Diode NCV Hz Live WireTester
DESCRIPTION
Auto-ranging operation
Automatic identification of voltage, resistance, and continuity
True RMS measurement (on some versions)
NCV (non-contact voltage detection)
Continuity and diode testing
LCD display with backlight
Auto power-off
AC/DC voltage measurement
Resistance measurement
SPECIFICATIONS
AC Current: N/A
AC Voltage: 620V
Brand Name: MAXRIENY
Certification: CE,FCC,RoHS
DC Current: N/A
DC Voltage: 620V
DIY Supplies: Electrical
Dimensions: 147*85*4.2mm
Display Type: Digital Display
Hign-concerned Chemical: None
Is Smart Device: No
MAXRIENY Model: S10
Measuring Capacitance Range: 99.99mF
Measuring Inductance Range: N/A
Measuring Resistance Range: 60MOhm
Model Number: Digital Multimeter
Operating Mode: Automatic/Manual
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.
The test parameters of S10/S11 are exactly the same, the difference is: S10 uses 1.5V AAA battery power supply; S11 built-in 800mA rechargeable lithium battery.
The S20 product is the highest version of the series, adding EMF detection function.
Specifications:
Display: 9999 counts.
Screen: 3.5 inch.

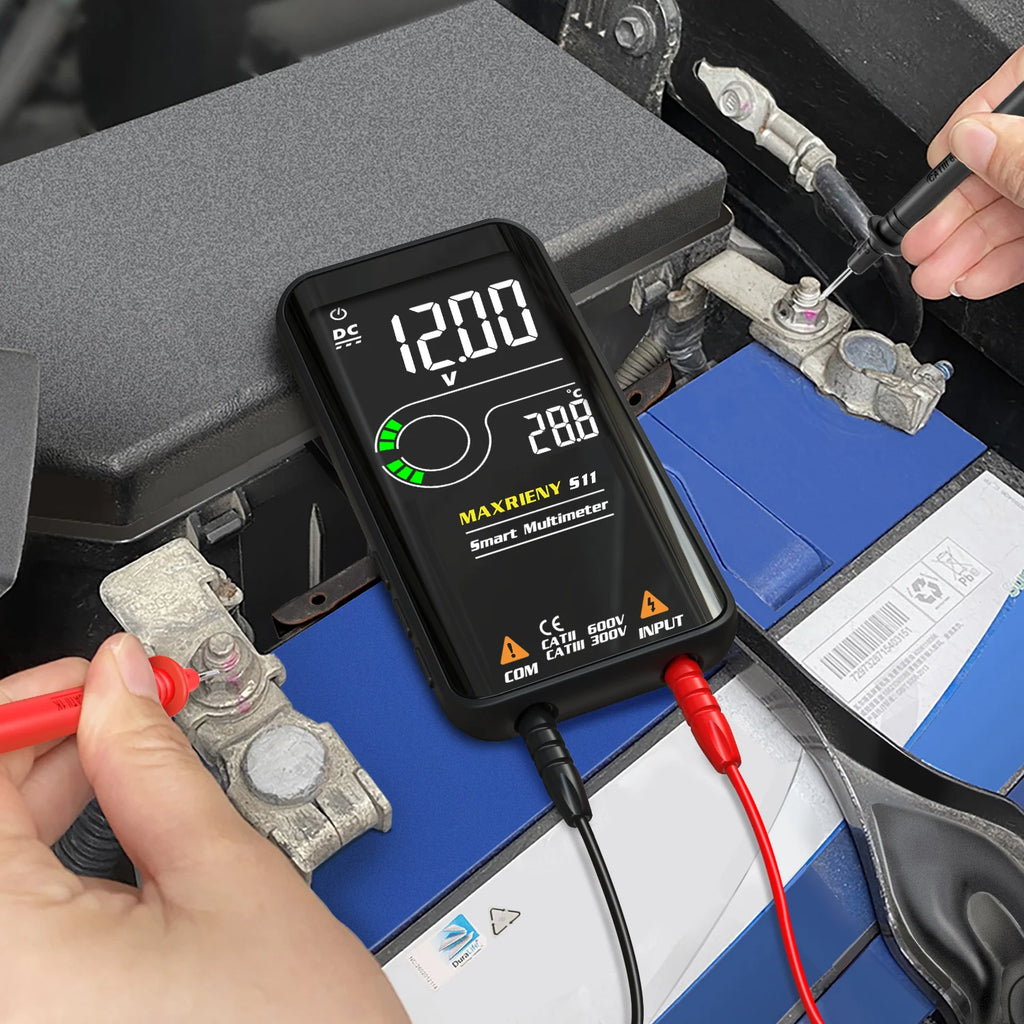

DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

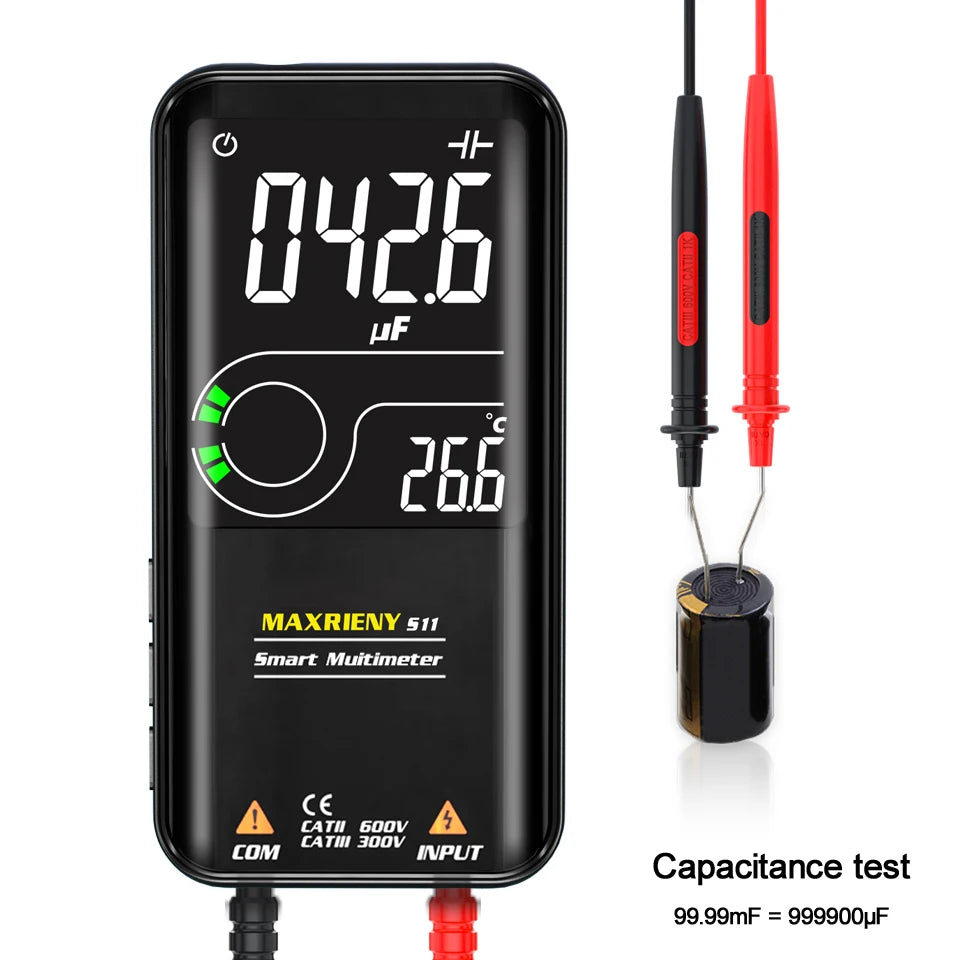

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF`99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz. 1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.

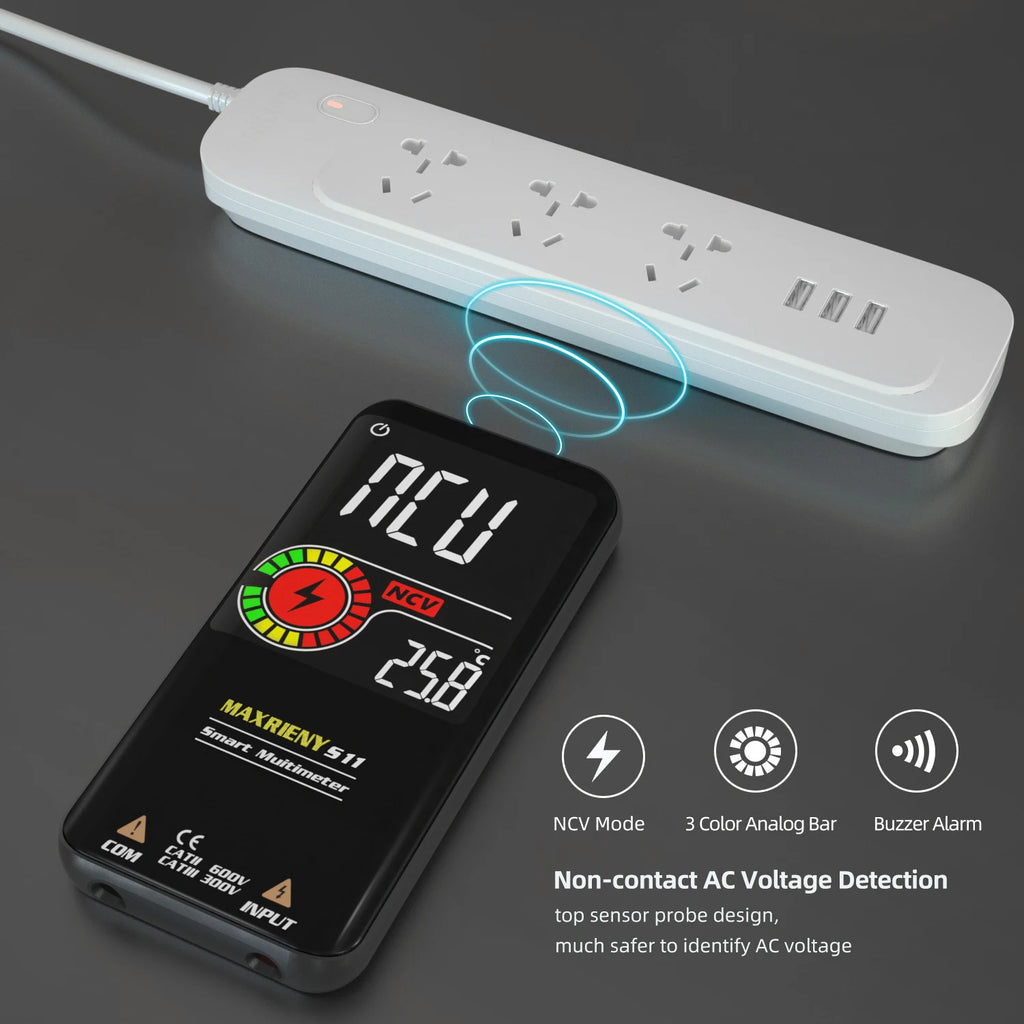

V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.
S10 Power: 1.5V (AAA) x 2.

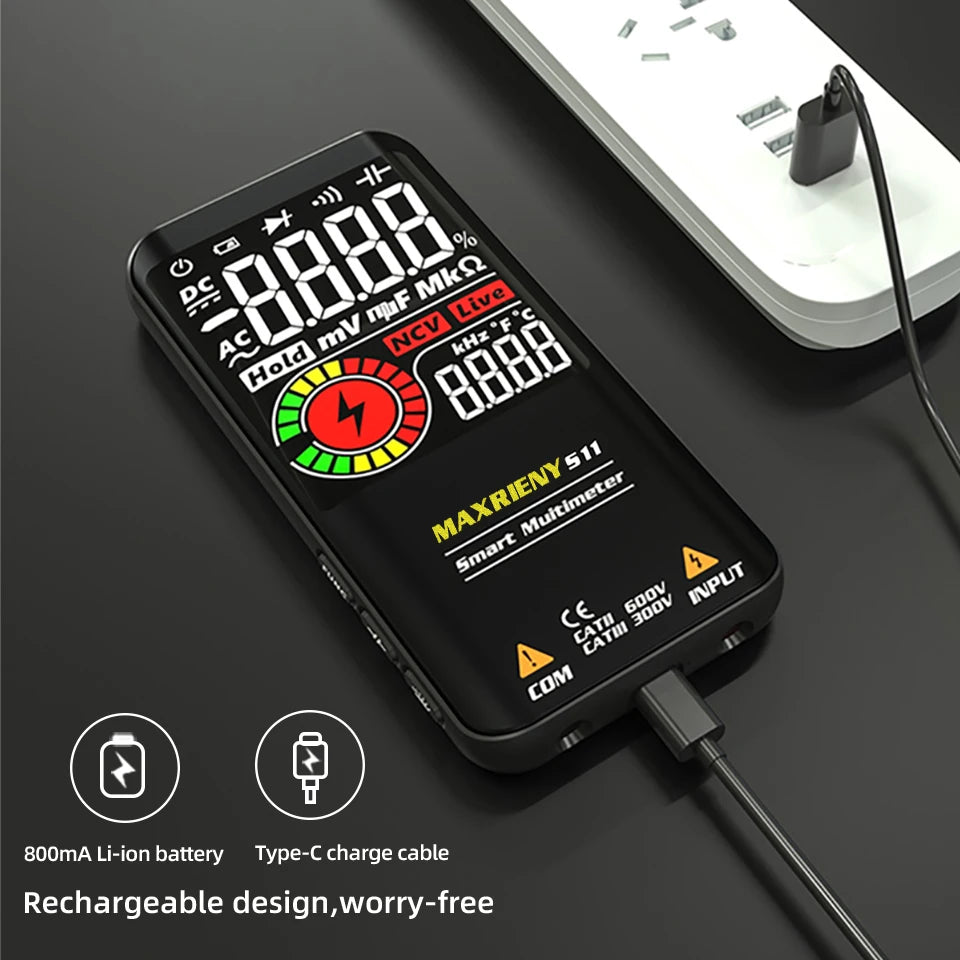

S11 Power: Built-in rechargeable lithium battery.
Package Size: 147*85*42mm.
Package Weight: 180g
Package Includes:
A10
1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.
1 * EVA portable cloth bag.

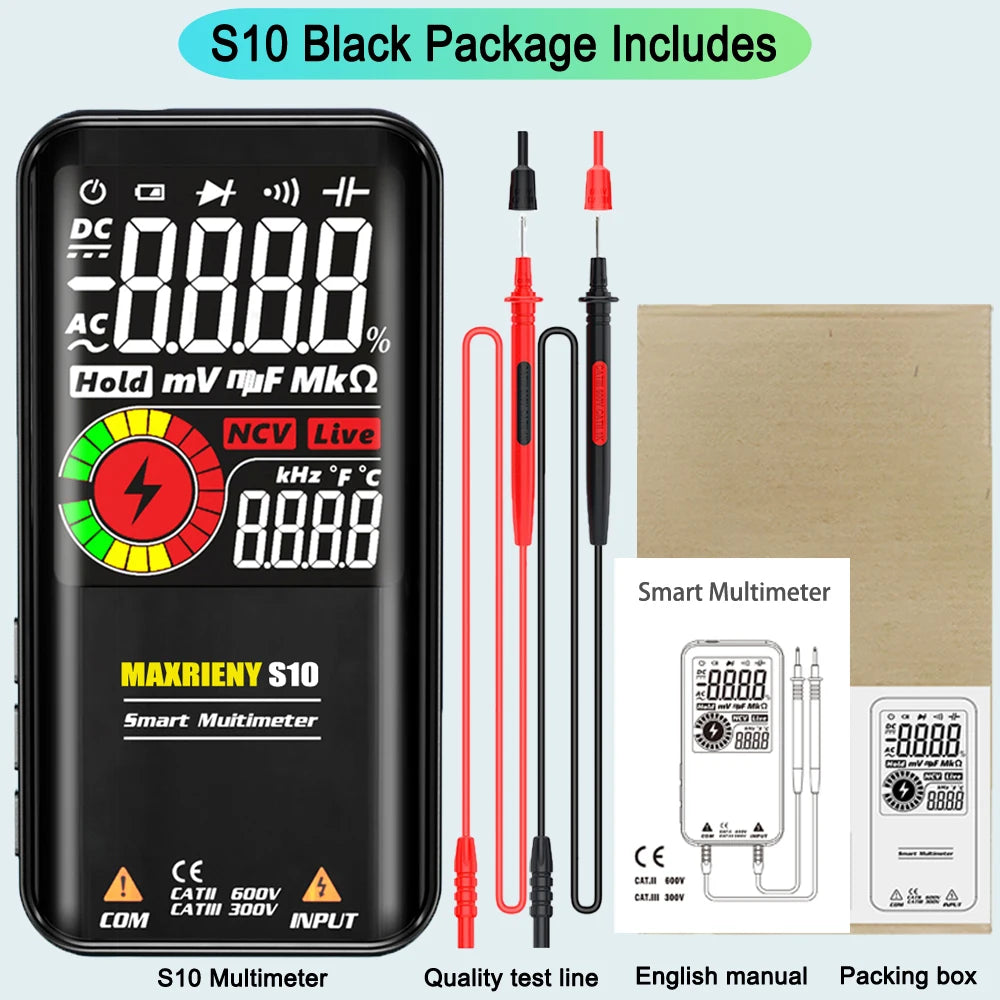

S10
1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.
S11
1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.
1 * EVA portable cloth bag.

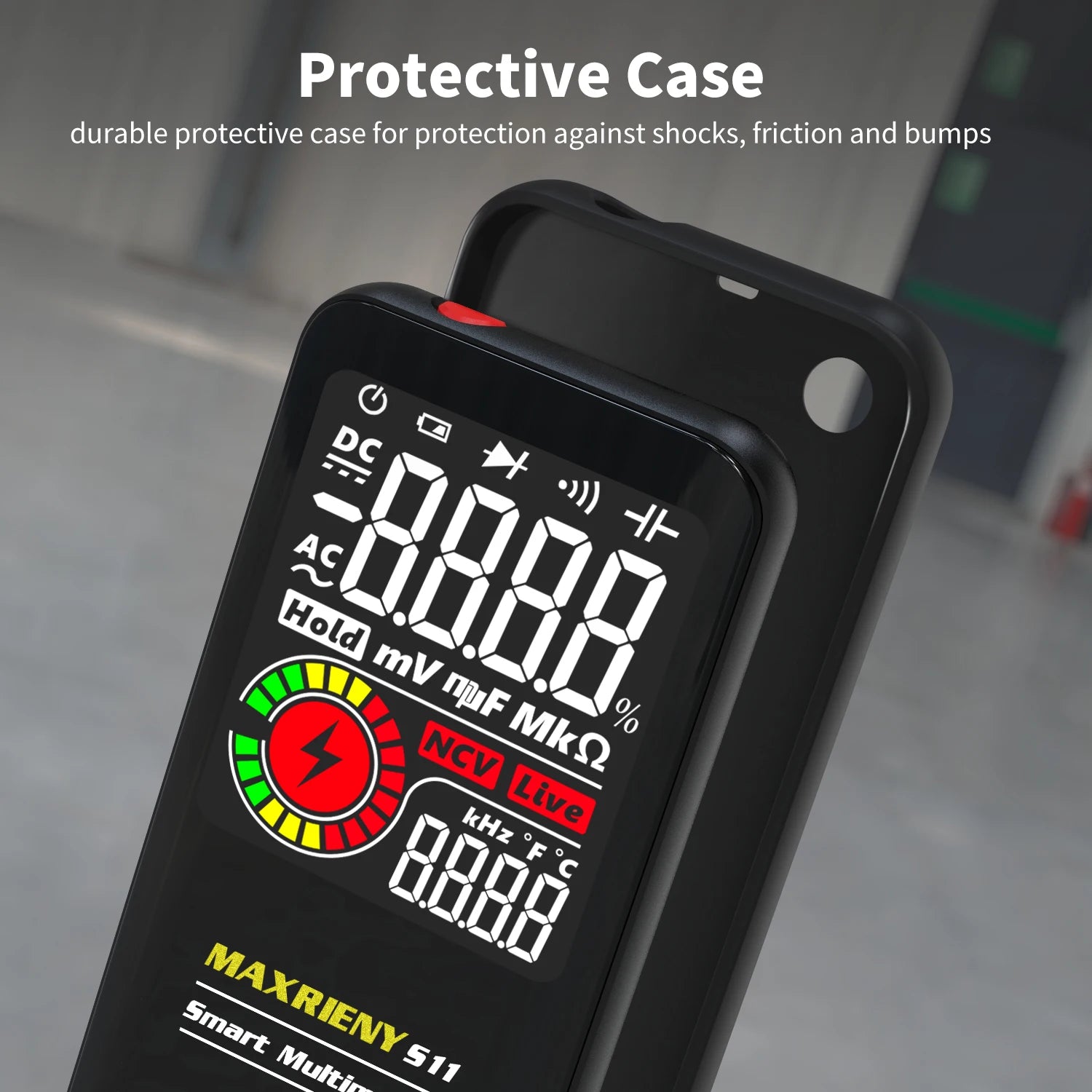

1 * Protective shell.
S20EMF
S20
1 * Multimeter.
1 * Test Lead.
1 * English user Manual.
1 * Packing Box.
1 * EVA portable cloth bag.
1 * Protective shell.
