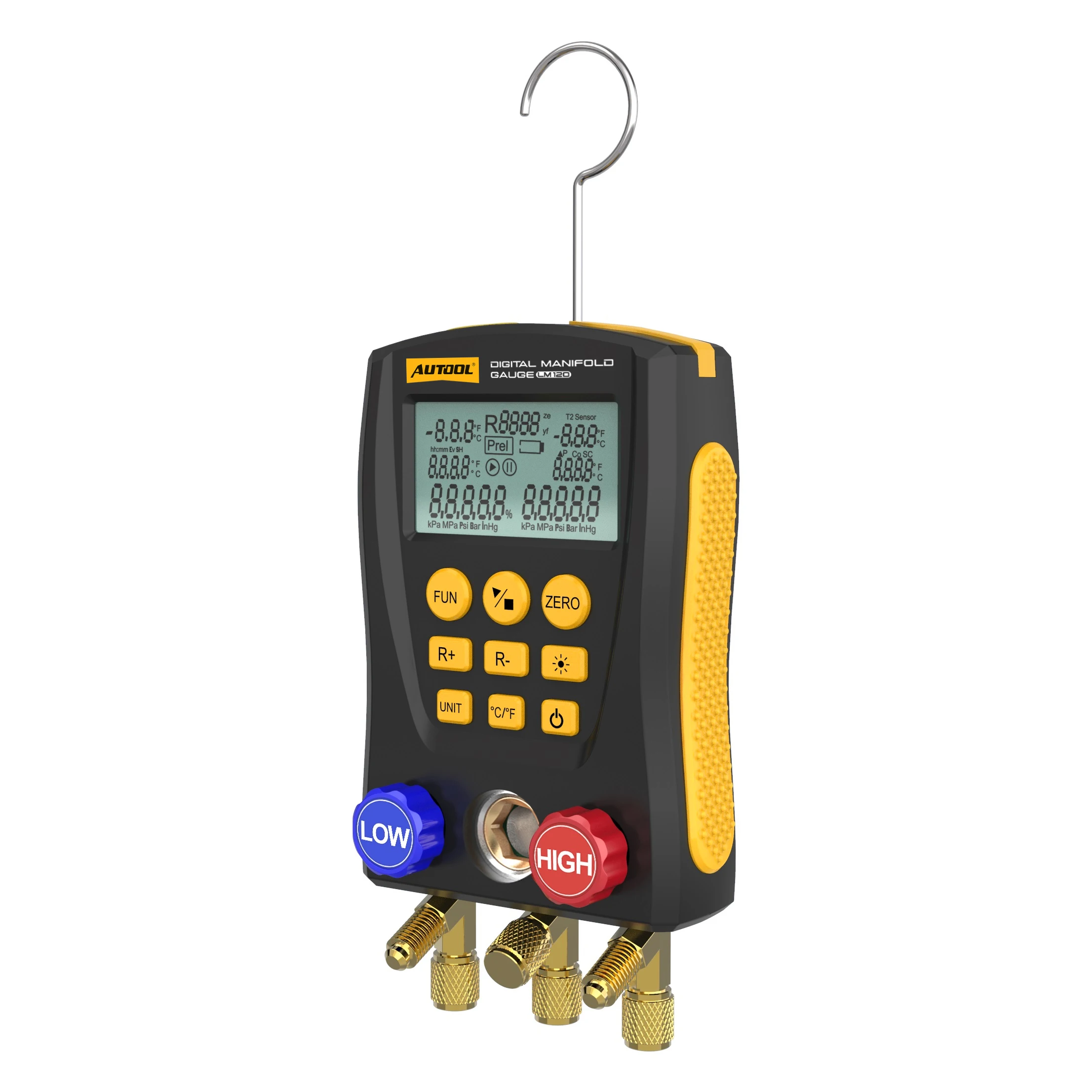

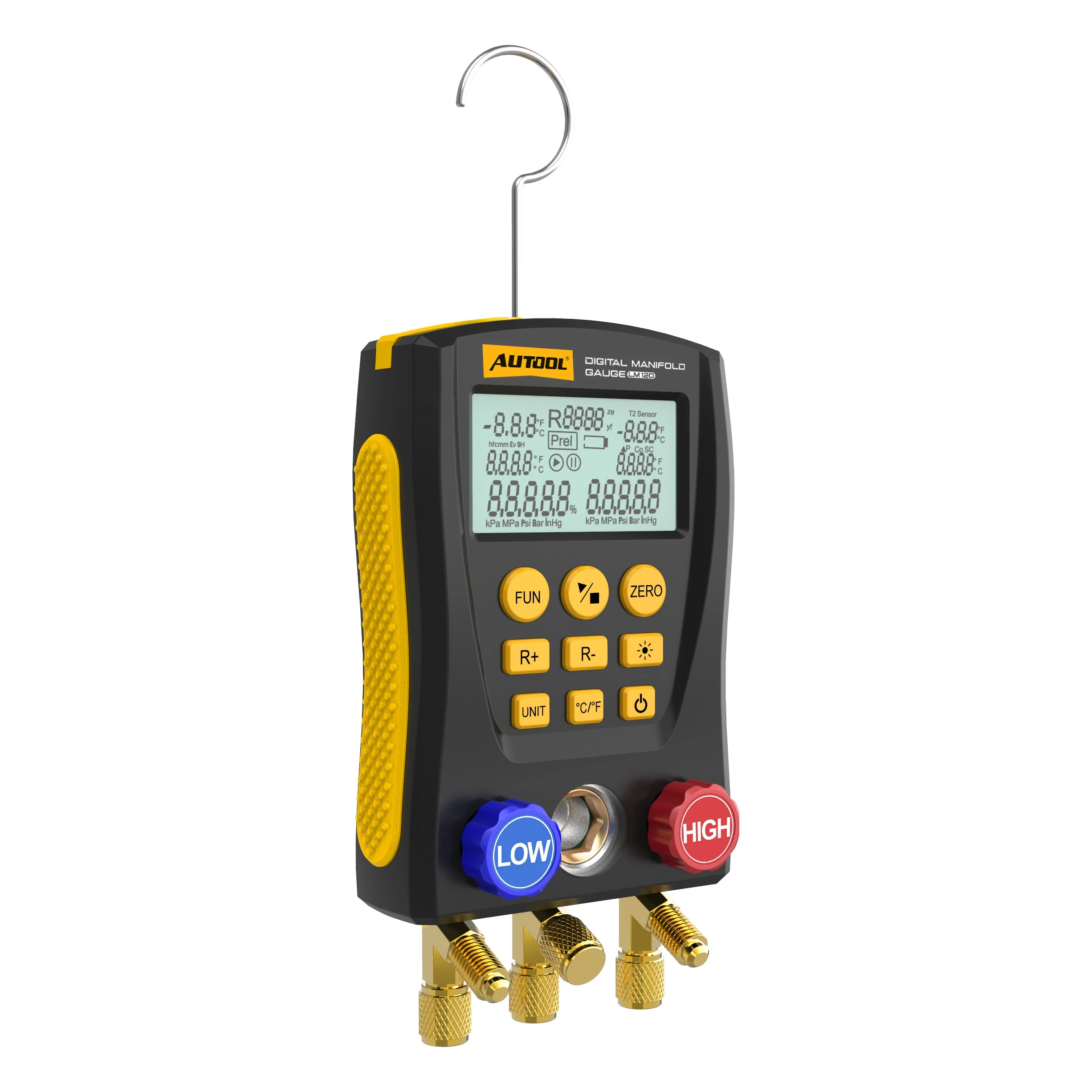

AUTOOL LM120+ Digital Refrigeration Pressure Gauge, Air Conditioning Temperature Detector, Multi-Function Vacuum Pressure Test Tool Kit
AUTOOL LM120+ Digital Refrigeration Pressure Gauge, Air Conditioning Temperature Detector, Multi-Function Vacuum Pressure Test Tool Kit
DESCRIPTION
AUTOOL LM120 Plus is an auxiliary instrument for the installation,testing and maintenance of refrigeration equipment such as air conditioners and cold storage.The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout,multi-unit switching, multi-mode function and built-in refrigerant database.
Digital Pressure Gauge: Provides convenient digital monitoring of refrigeration and air-conditioning system pressure.
Temperature Detection: Measures system temperature to help evaluate operating conditions during diagnostics.
Multi-Function Testing: Combines pressure, temperature, and vacuum testing capabilities in one practical tool.
A/C Diagnostic Tool: Suitable for checking automotive air-conditioning systems and identifying potential pressure-related issues.
Refrigeration Testing: Useful for refrigeration and HVAC maintenance, servicing, and troubleshooting.
Vacuum Pressure Testing: Helps monitor vacuum and pressure conditions during system evacuation and service procedures.
Easy-to-Read Display: Digital screen provides clear readings for convenient observation while working.
Portable Design: Compact handheld construction is convenient for garages, workshops, and field service.
Versatile Applications: Suitable for automotive technicians, HVAC professionals, refrigeration service, and DIY maintenance.
Complete Tool Kit: Designed as a practical testing solution for a variety of air-conditioning and refrigeration diagnostic tasks.
SPECIFICATIONS
Brand Name: MR CARTOOL
Origin: Mainland China
Pressure test: gauge pressure
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa – 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa – 0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C–150°C (-40°F–302°F)
Temperature test resolution:
0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)
0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
Built-in 89 kinds of refrigerant NIST: According to American NIST standard
Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include
Dimensions: 170*110*50mm weight: 950g
AUTOOL LM120+ Digital Refrigeration Pressure Gauge Air Conditioning Temperature Detector Multi Function Vacuum Pressure Test Tool Kit
AUTOOL LM120 Plus is an auxiliary instrument for the installation,testing and maintenance of refrigeration equipment such as air conditioners and cold storage.The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout,multi-unit switching, multi-mode function and built-in refrigerant database.

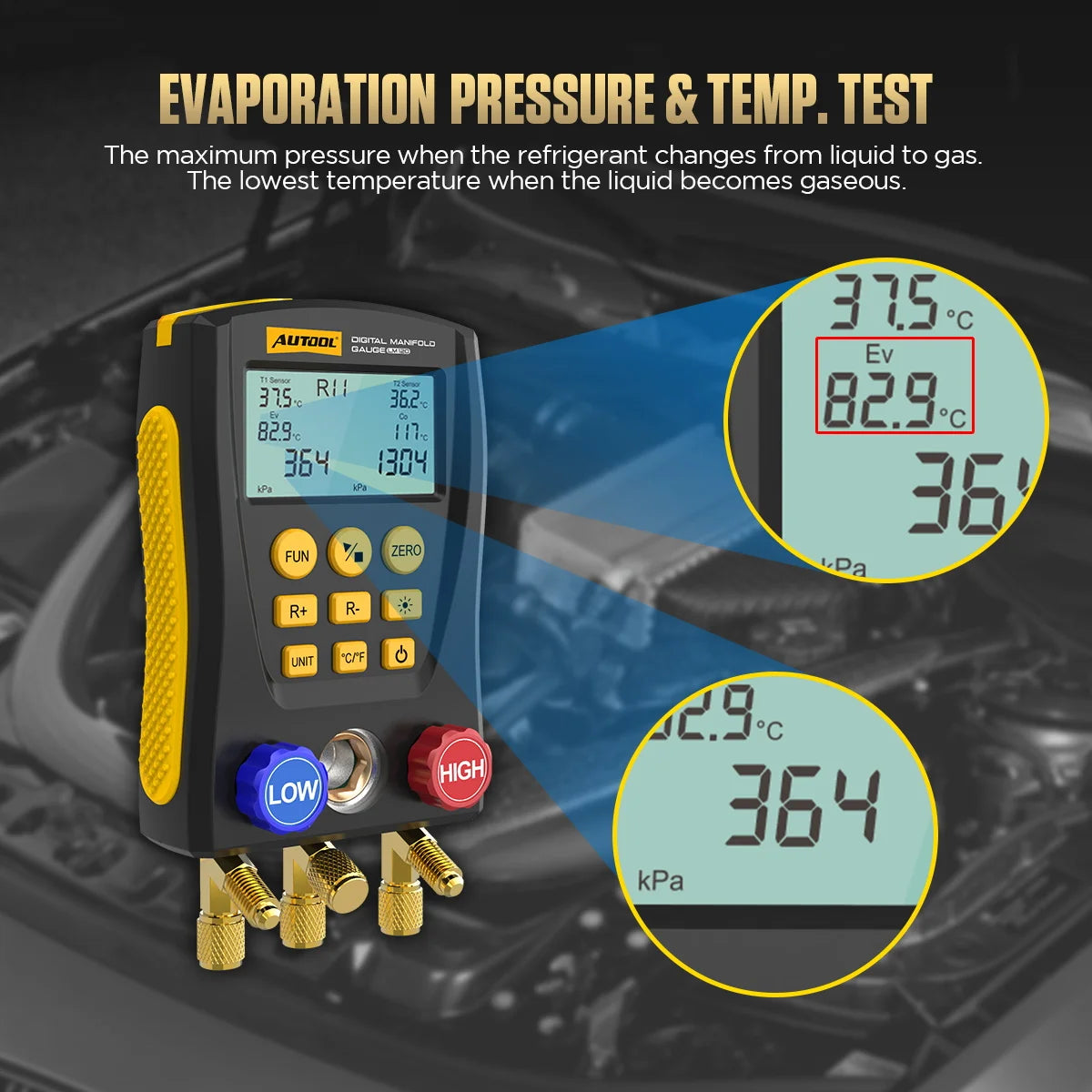

EVAPORATION PRESSURE & TEMP. TEST
The maximum pressure when the refrigerant changes from liquid to gas.
The lowest temperature when the liquid becomes gaseous

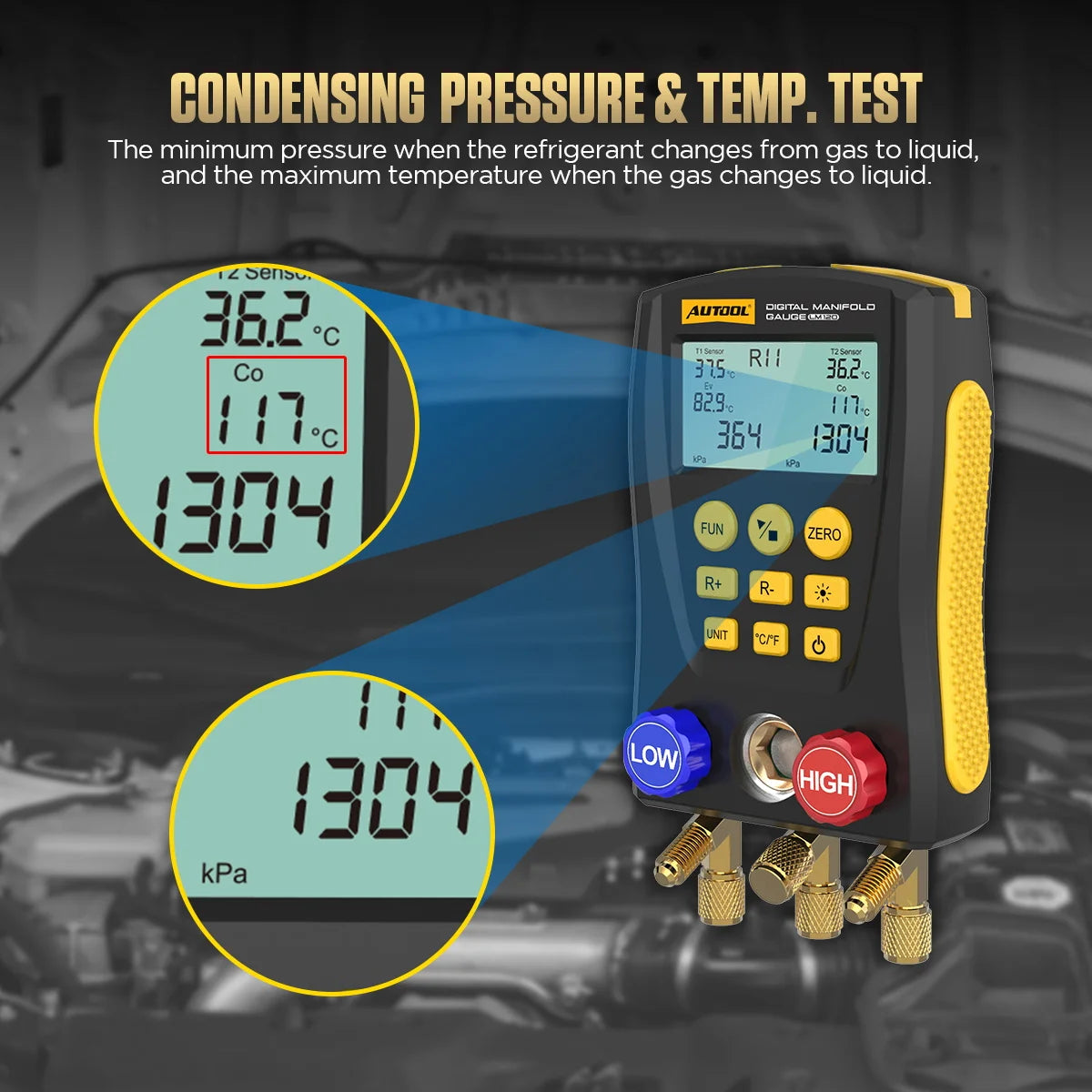

CONDENSING PRESSURE & TEMP. TEST
The minimum pressure when the refrigerant changes from gas to liquid,
and the maximum temperature when the gas changes to liquid.

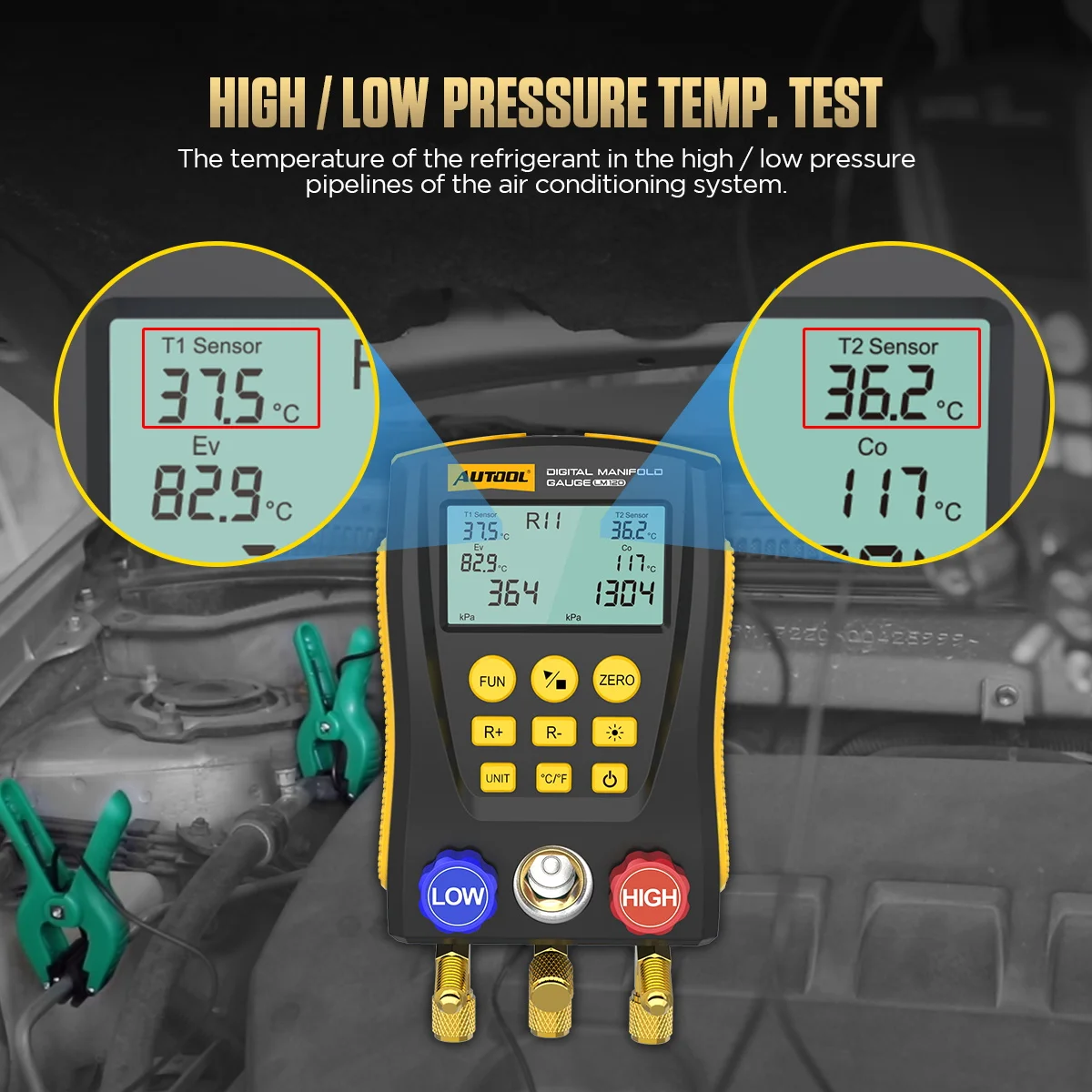

HIGH / LOW PRESSURE TEMP. TEST
The temperature of the refrigerant in the high / low pressure pipelines of the air conditioning system.

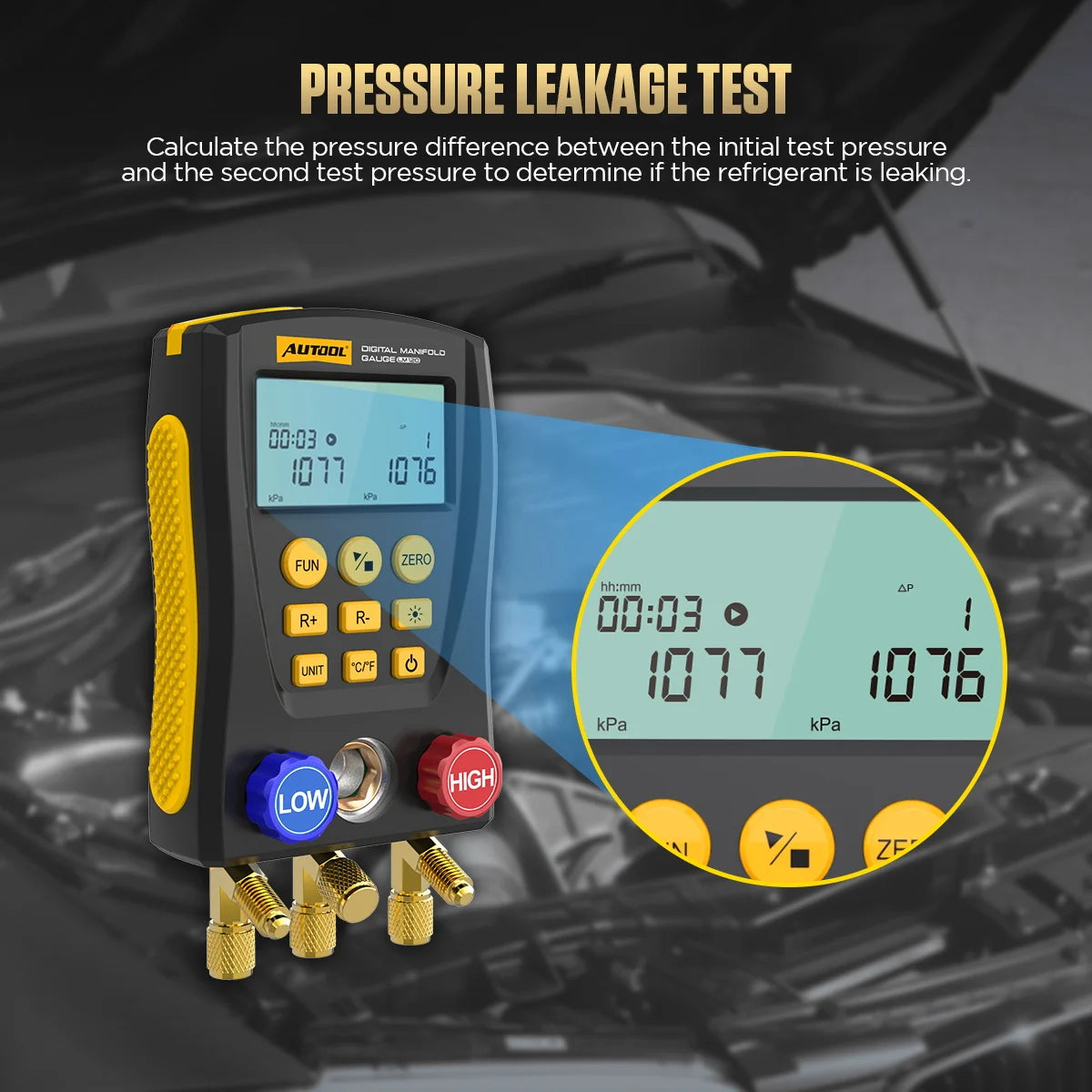

PRESSURE LEAKAGE TEST
Calculate the pressure difference between the initial test pressure and the second test pressure to determine if the refrigerant is leaking.

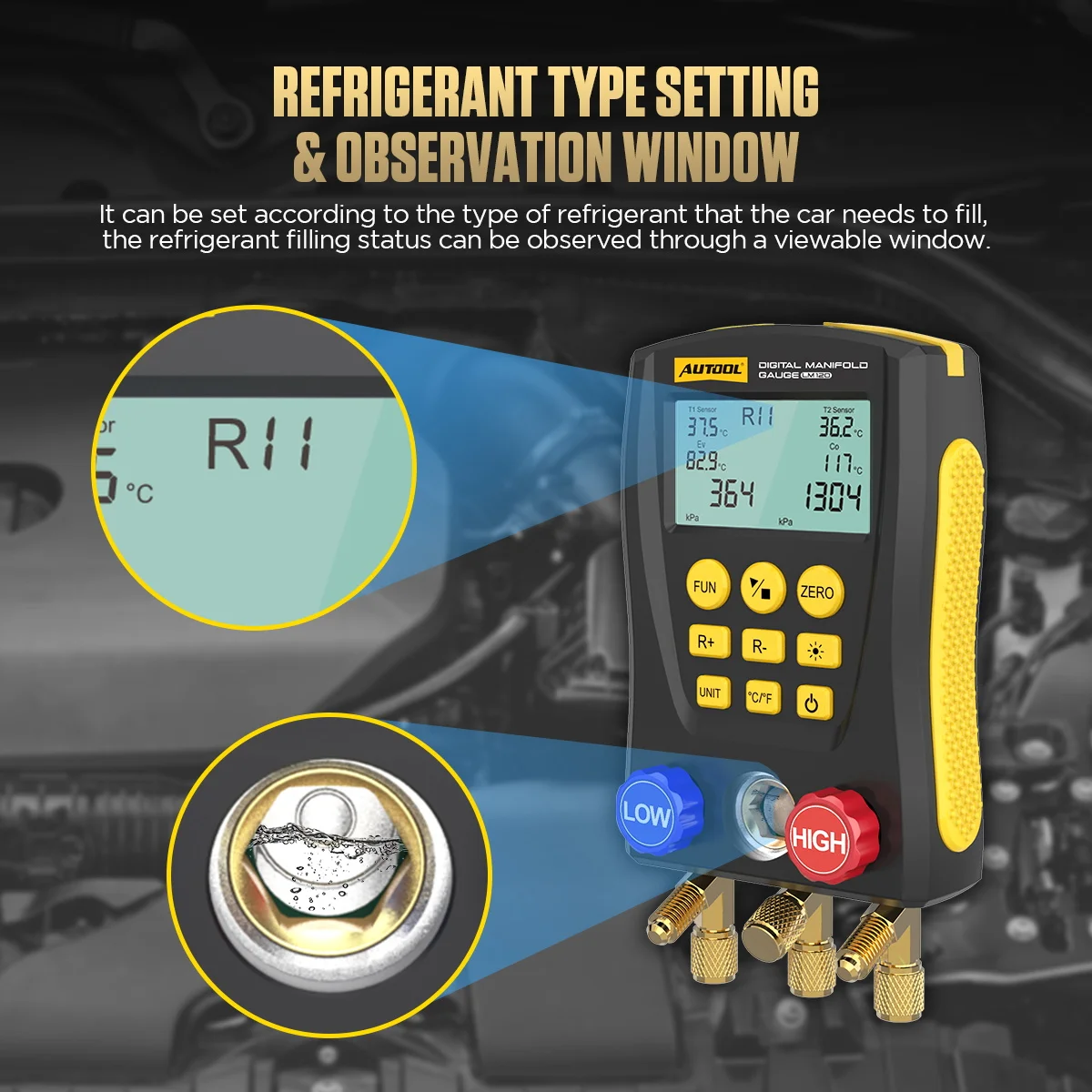

REFRIGERANT TYPE SETTING & OBSERVATION WINDOW REFRIGERANT TYPE SETTING & OBSERVATION WINDOW
It can be set according to the type of refrigerant that the car needs to fill,
the refrigerant filling status can be observed through a viewable window.

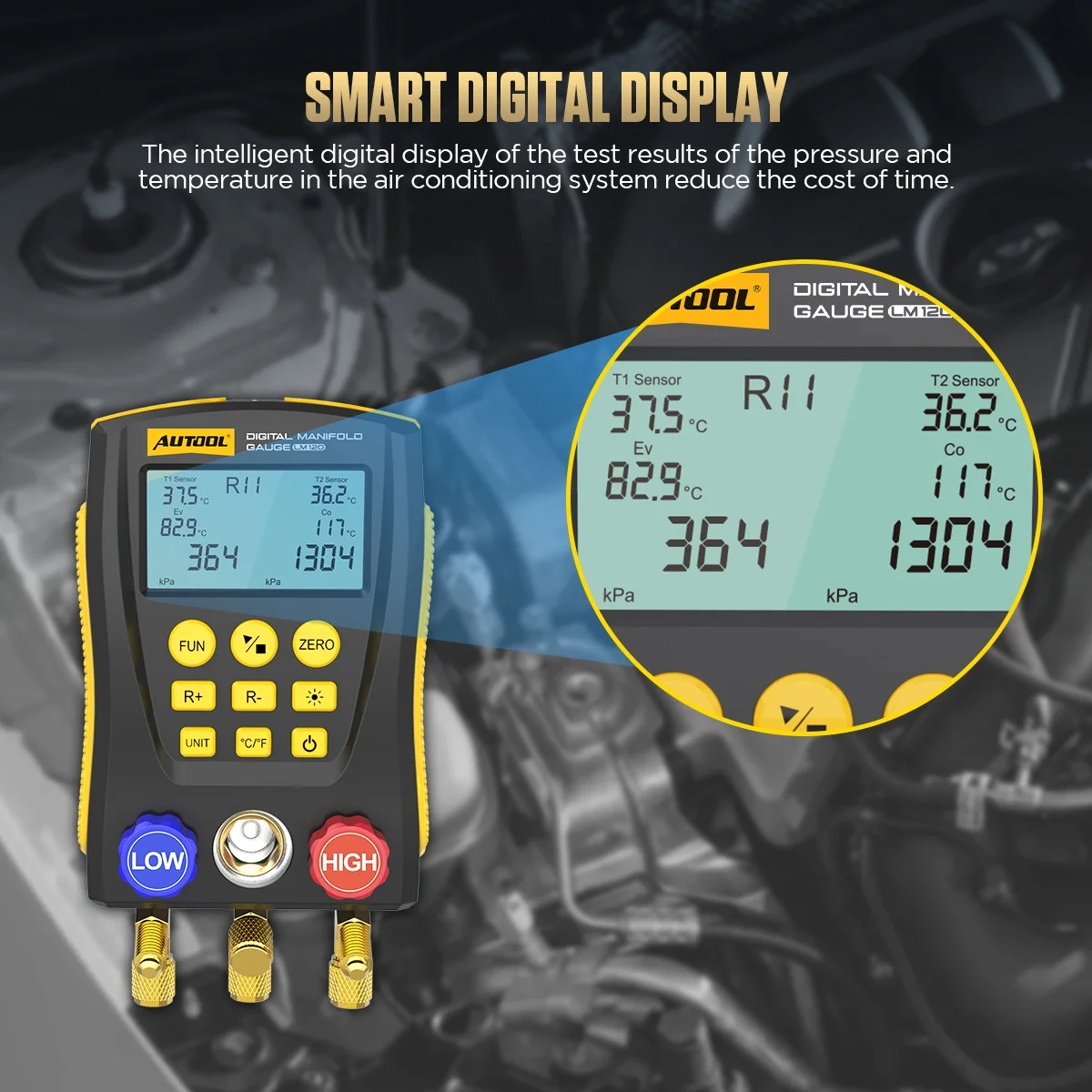

SMART DIGITAL DISPLAY
The intelligent digital display of the test results of the pressure and temperature in the air conditioning system reduce the cost of time.

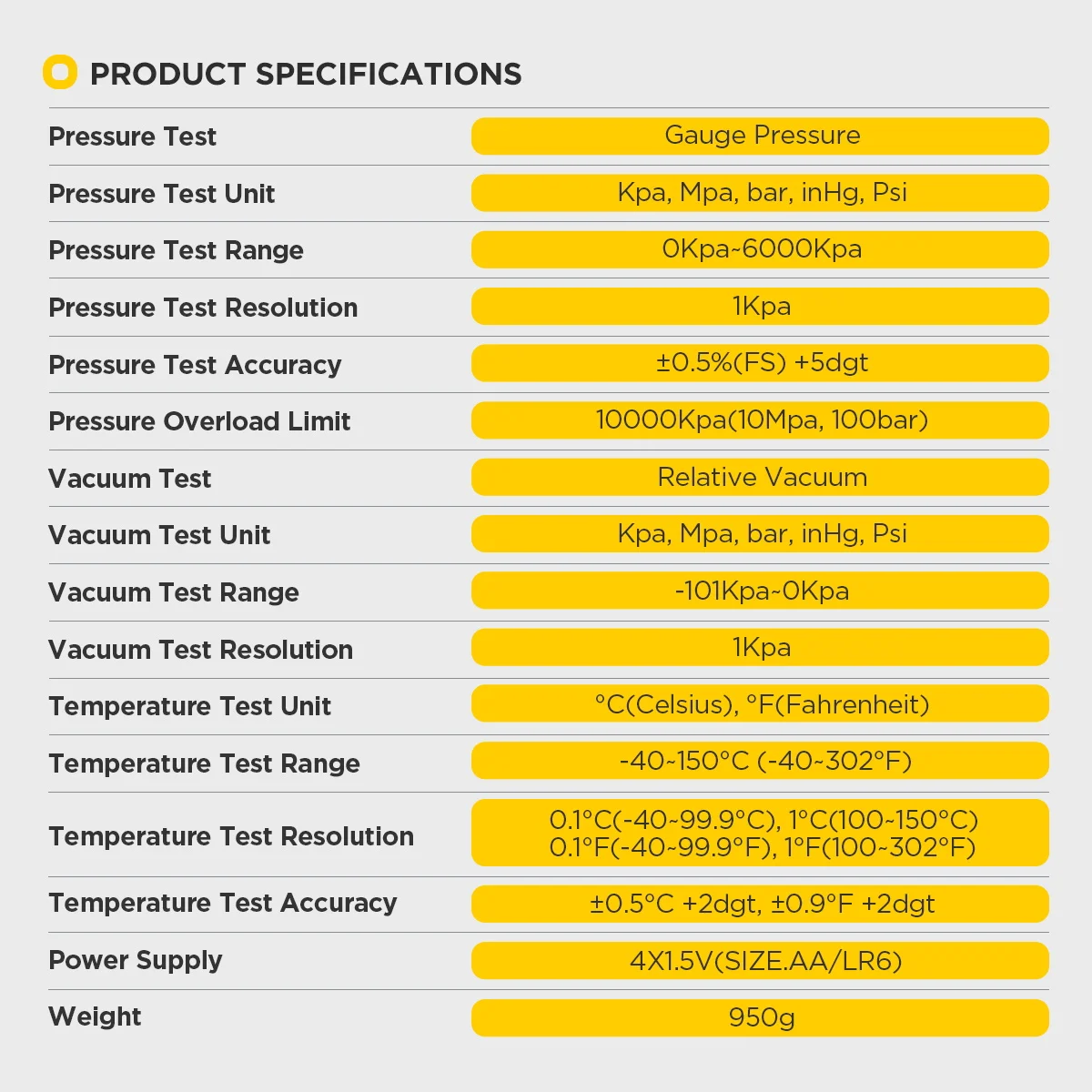

Product Specifications
Pressure test: gauge pressure
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa – 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa – 0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C–150°C (-40°F–302°F)
Temperature test resolution:
0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)
0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
Built-in 89 kinds of refrigerant NIST: According to American NIST standard
Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include
Dimensions: 170*110*50mm weight: 950g

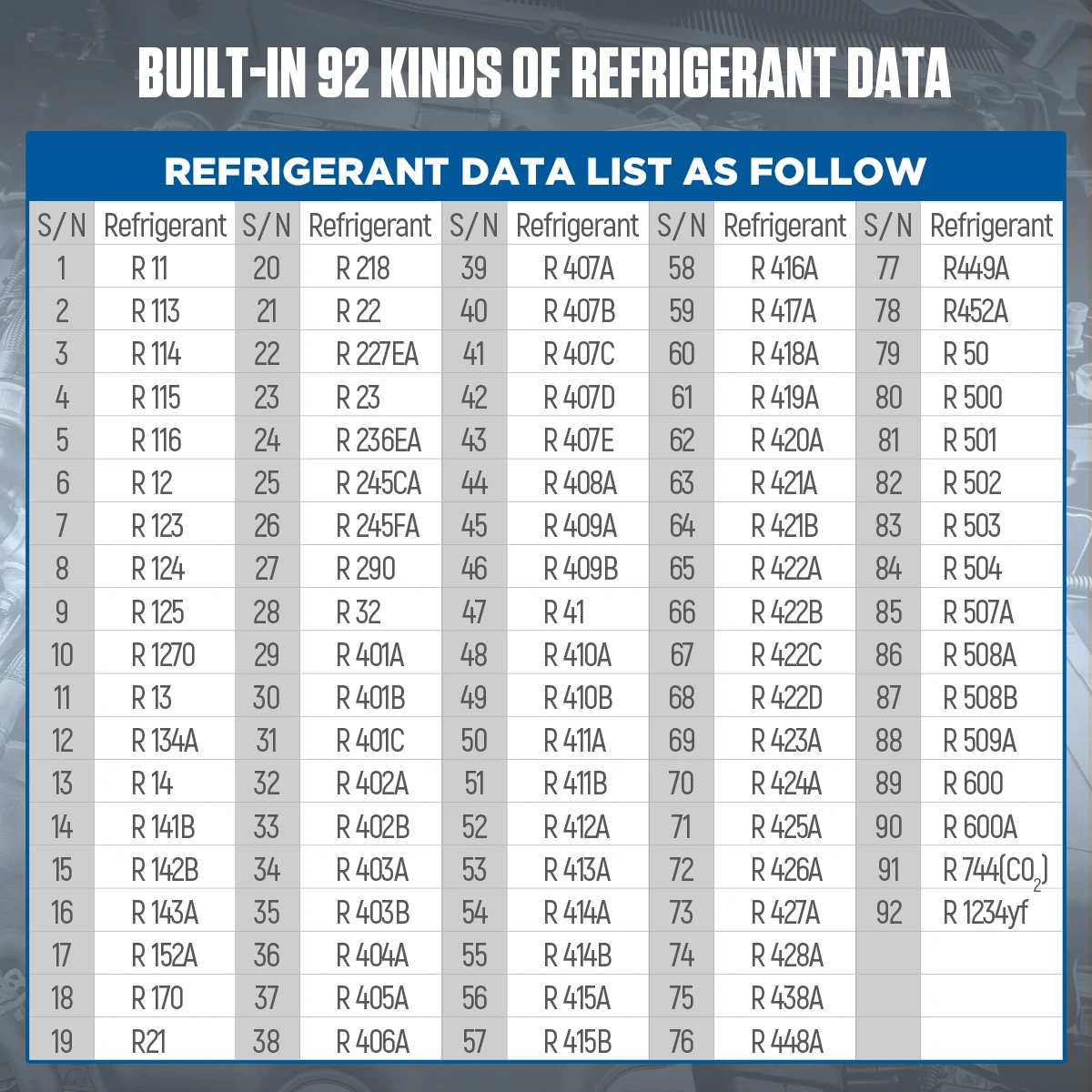

Compatible Refrigerant

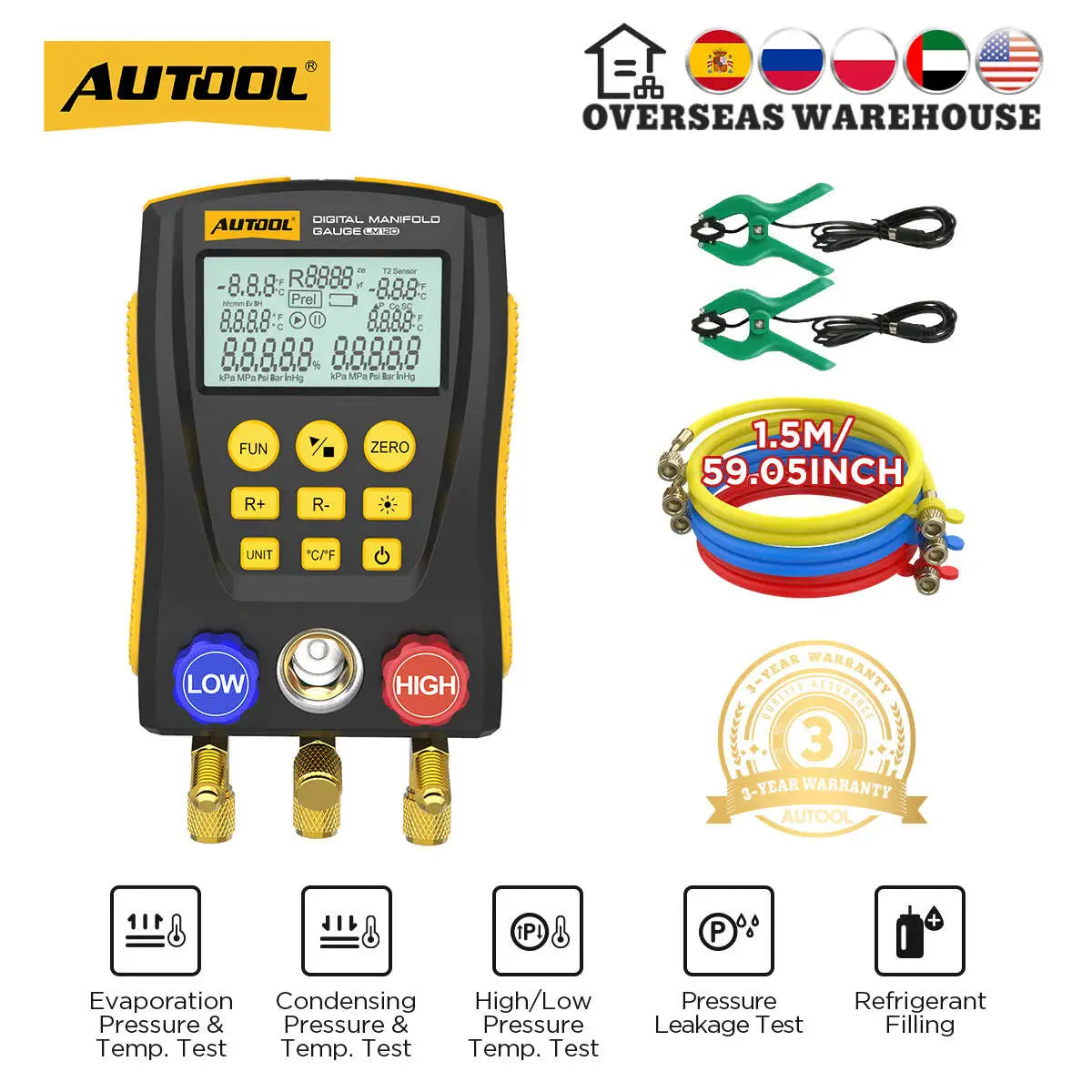

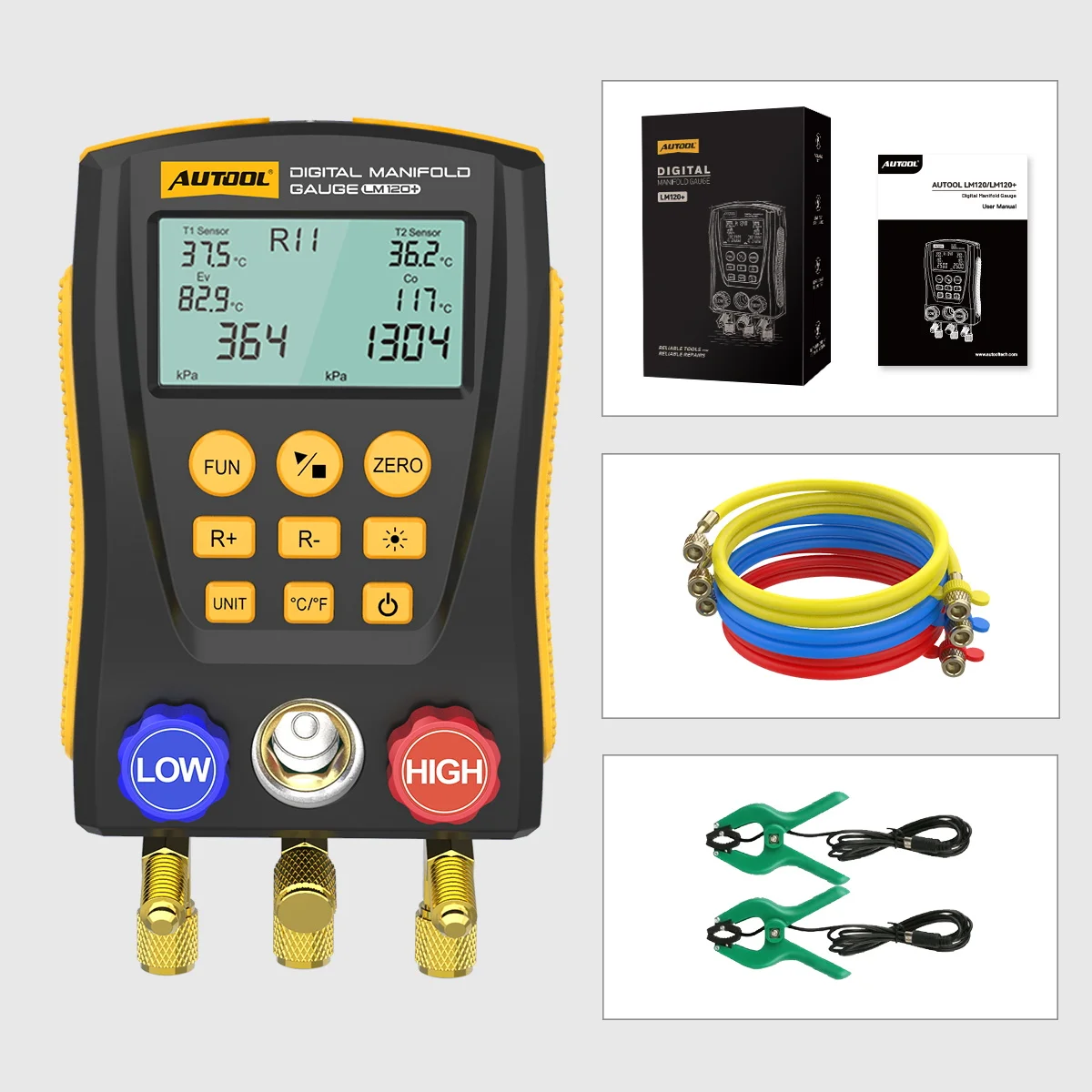

Packing list：
1x Refrigerantion Digital Manifold Gauge
1x User Manual (in English)
2x Temperature Clip
3x Test Pipe
1x Suitcase
Battery not include
