DESCRIPTION

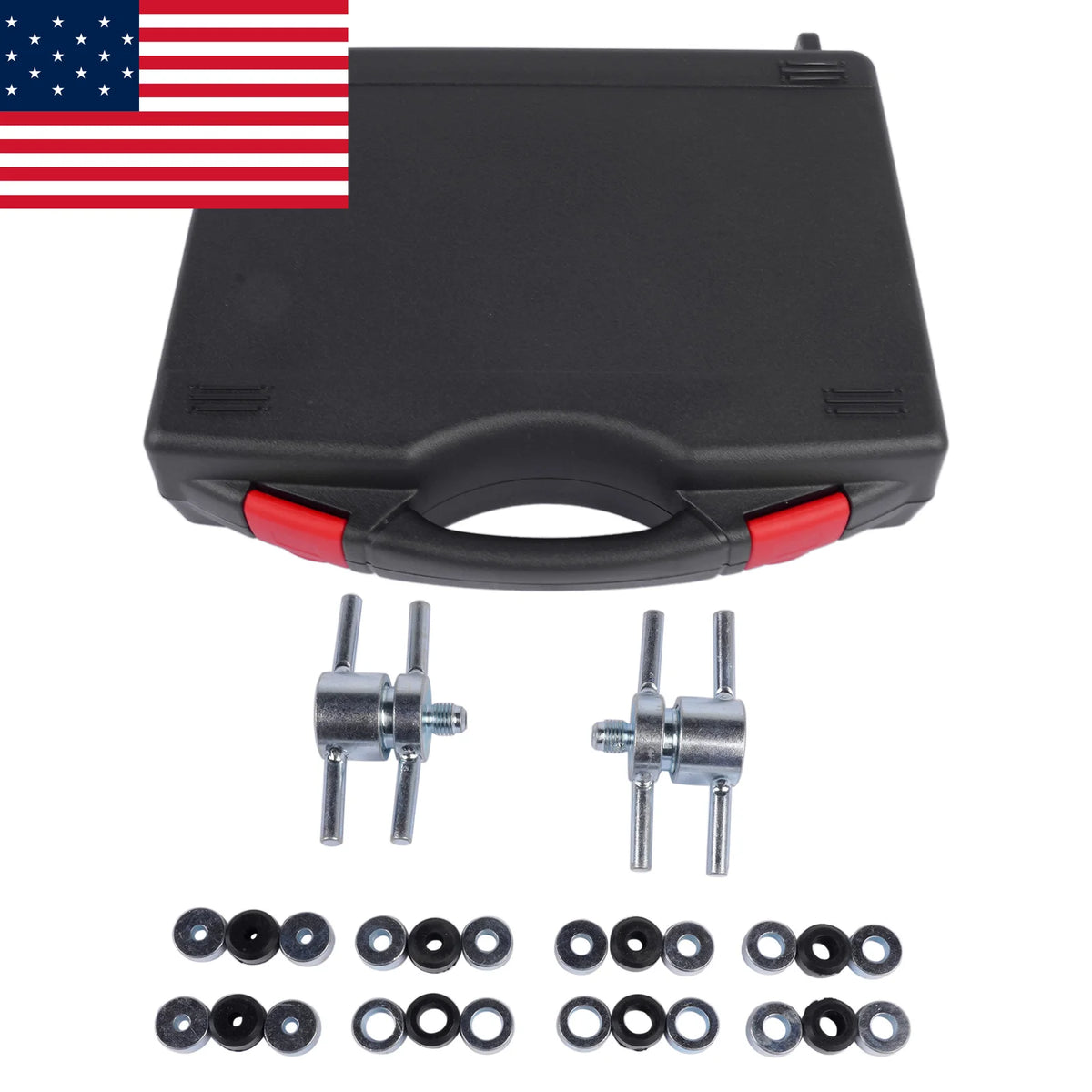

4 Tubing Sizes: Includes adapters for 3/16", 1/4", 5/16", and 3/8" tubing.

Process Tube Service: Designed for connecting service equipment to compatible process tubes.

Versatile HVAC/R Applications: Useful for refrigeration and air-conditioning system servicing.

Secure Connections: Designed to provide a reliable connection between tubing and compatible service equipment.

Multiple Adapter Options: Allows technicians to select the appropriate adapter for different tubing diameters.

Durable Construction: Built for repeated use in professional maintenance environments.

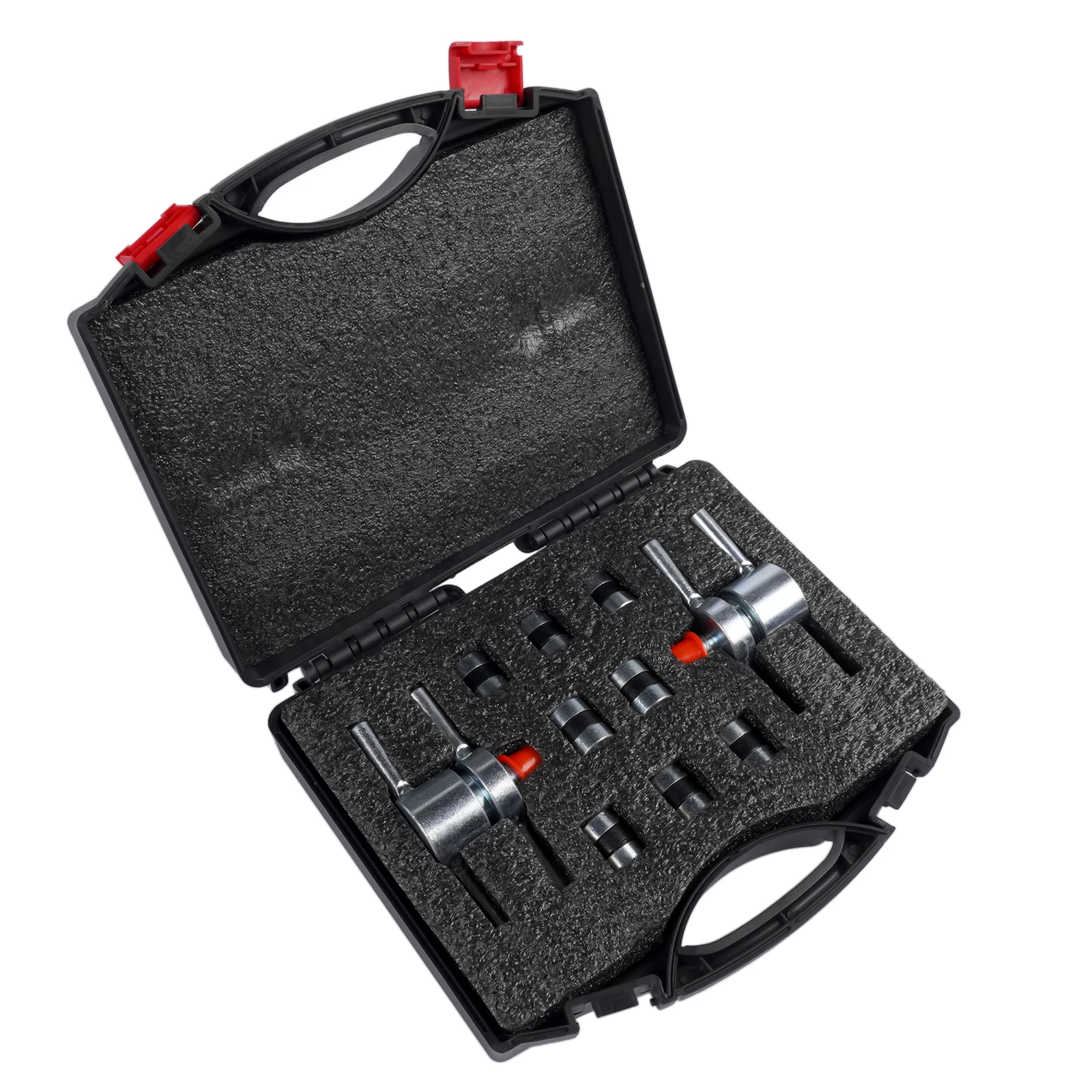

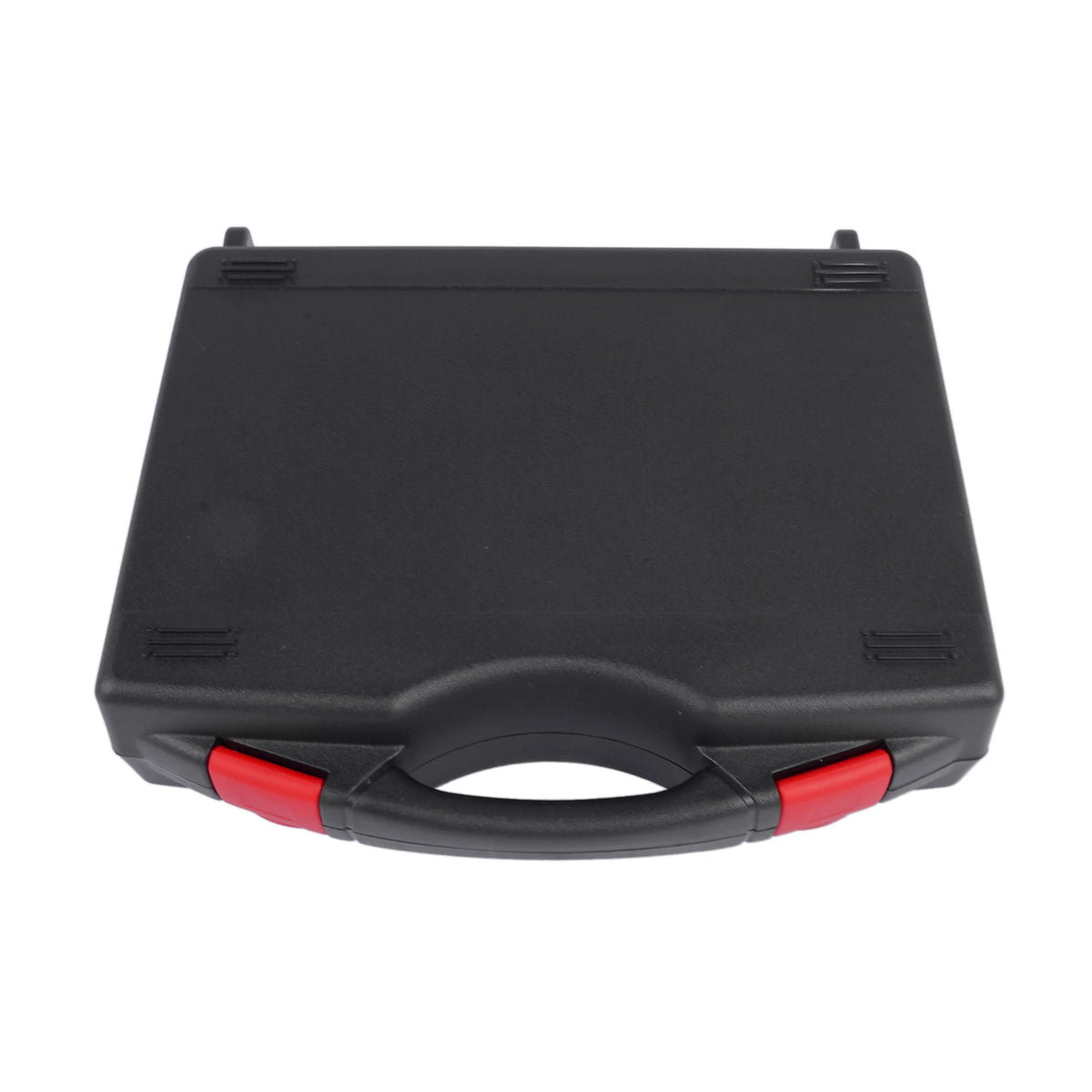

Compact Storage Case: Keeps adapters organized and makes transportation convenient.

Service & Maintenance Tool: Useful for system charging, evacuation, testing, and maintenance tasks.

Professional Use: Suitable for HVAC technicians, refrigeration mechanics, and repair shops.

Easy to Organize: Dedicated storage helps reduce misplaced small components.

Note: Verify the tubing dimensions and connection type before use to ensure compatibility with your specific HVAC or refrigeration system. Follow applicable refrigerant-handling and service procedures.

SPECIFICATIONS

Origin: Mainland China

Product Type: Process Tube Adapter Kit

Model: AP03

Reference Number: 12458

Adapter Sizes: 3/16" / 1/4" / 5/16" / 3/8"

Number of Tubing Sizes: 4

Application: HVAC / Refrigeration Service

Primary Function: Process Tube Connection & Servicing

Suitable Tubing: Compatible Copper and Refrigeration Tubing

Service Applications: Charging, Evacuation, Testing, Maintenance

Construction: Durable Metal Components

Connection Type: Tube Adapter

Operation: Manual Installation

Use Environment: HVAC Workshop, Refrigeration Shop, Field Service

Portability: Portable

Storage: Included Storage Case

Suitable For: HVAC Technicians, Refrigeration Mechanics, Service Professionals

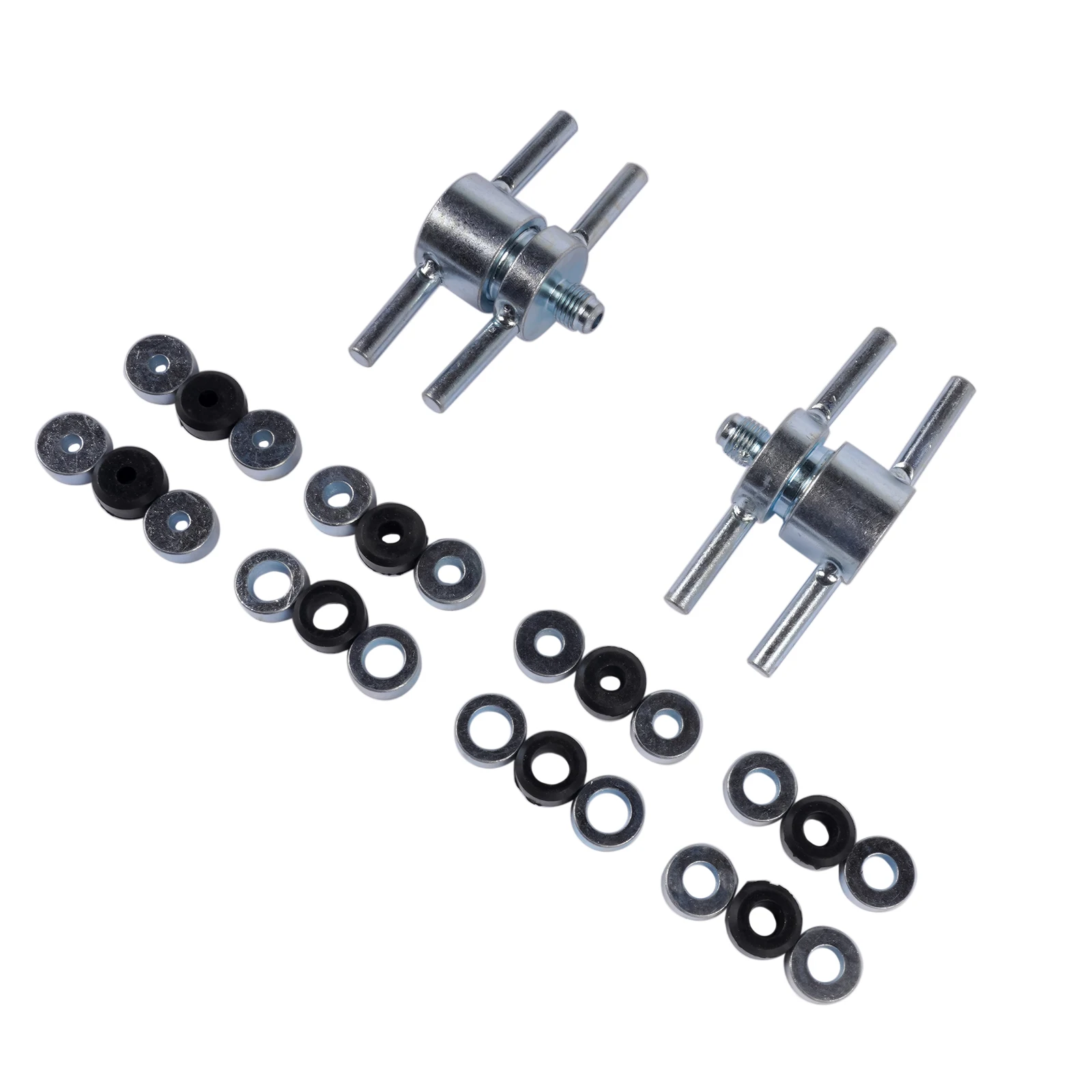

Package Contents: Process tube adapters for **3/16", 1/4", 5/16", and 3/8" tubing + storage case

- Specifics



Type: Adapter Kit Color: Black Model: 12458 Material: Plastic, Iron Thread Size: 3/8 inch Connector Type: Adapter Size: 3/16", 1/4", 5/16", 3/8" Net Weight: 3.31 Pounds Item Dimensions: 11.81 x 11.81 x 3.94 in.

- Features

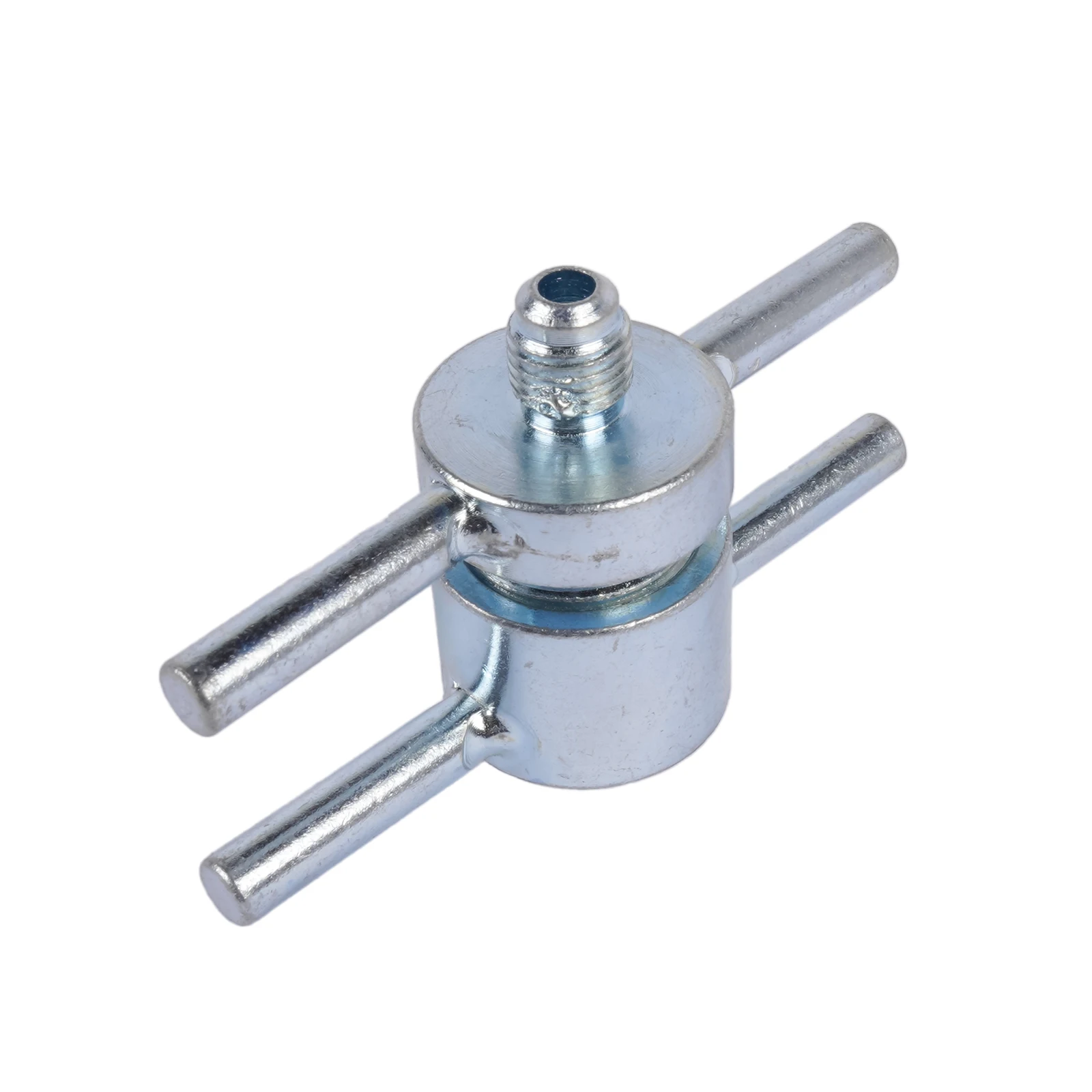

• Functionality: The 12458 Process Pipe Fitting Kit offers the quickest and simplest solution for connecting inflation lines to process pipes, suitable for system vacuuming and inflation operations.

• Professional Design: Engineered to ensure absolute sealing between piping and filling hoses

• Convenient & Safe: Eliminates the need for flaring, preventing debris from entering the system

• Versatile Application: Compatible with 3/16“, 1/4”, 5/16“, and 3/8” copper tubing

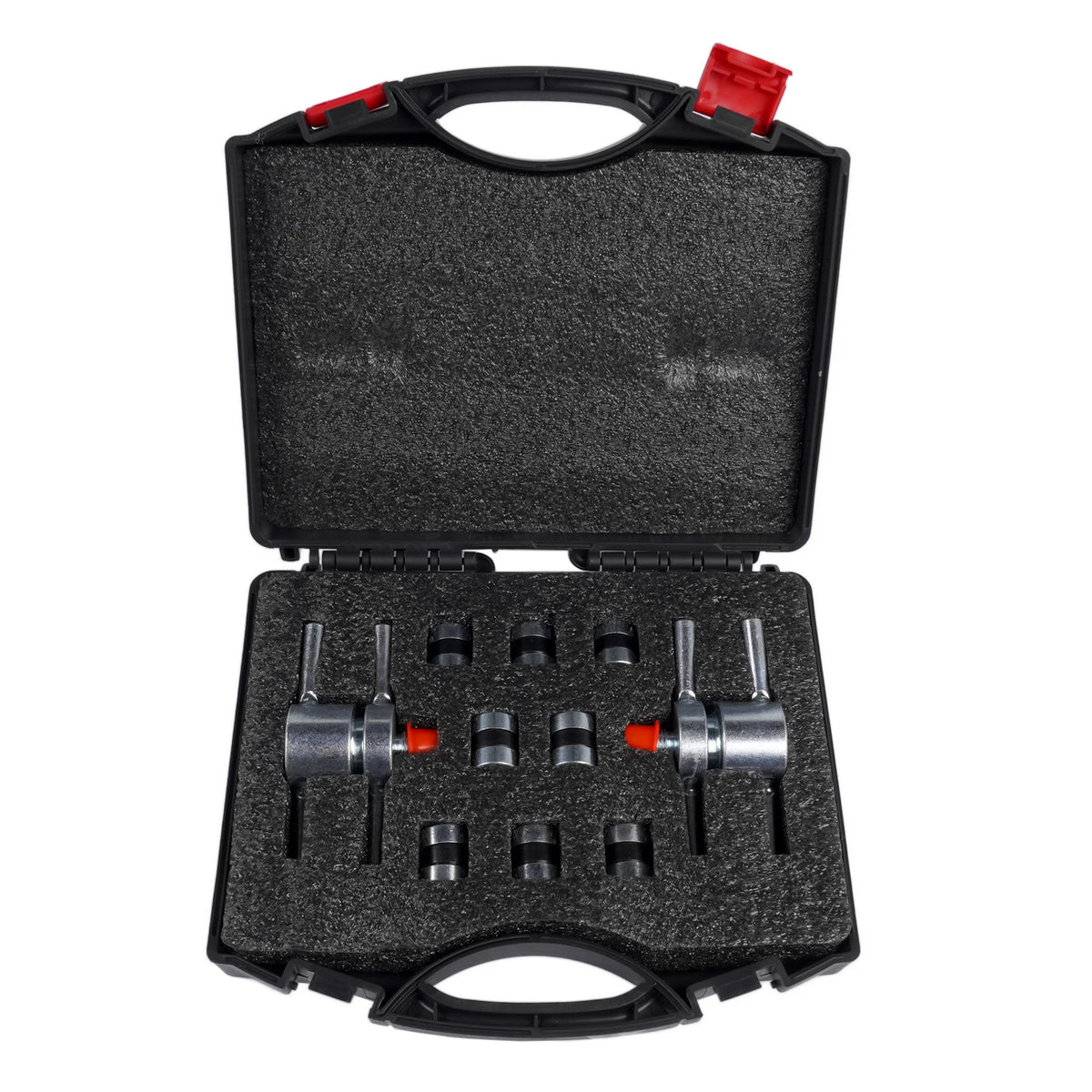

• Storage Case: Blow-molded storage case keeps kit components organized during downtime



- Operating Instructions

Depressurize the system according to the instructions.

Note: The adapter assembly and hose must remain free of oil and water.

• Install the piercing valve on the process pipe.
• Cut off the end of the process pipe at the clamp point or behind the weld point.
• Insert the pipe cap with the appropriately sized seal ring gasket set into the process pipe.
• Screw the valve body into the pipe cap until hand-tight.
• Connect the inflation line. Perform vacuum extraction and re-inflation on the system.
• Crimp the hose using a crimping tool.
• Remove the process fitting.
• Weld the end of the process pipe.





Professional installation is recommended.
Please check the part number and illustrations carefully to ensure that it fits your model. If you are not sure, please contact us and we will respond as soon as possible.
